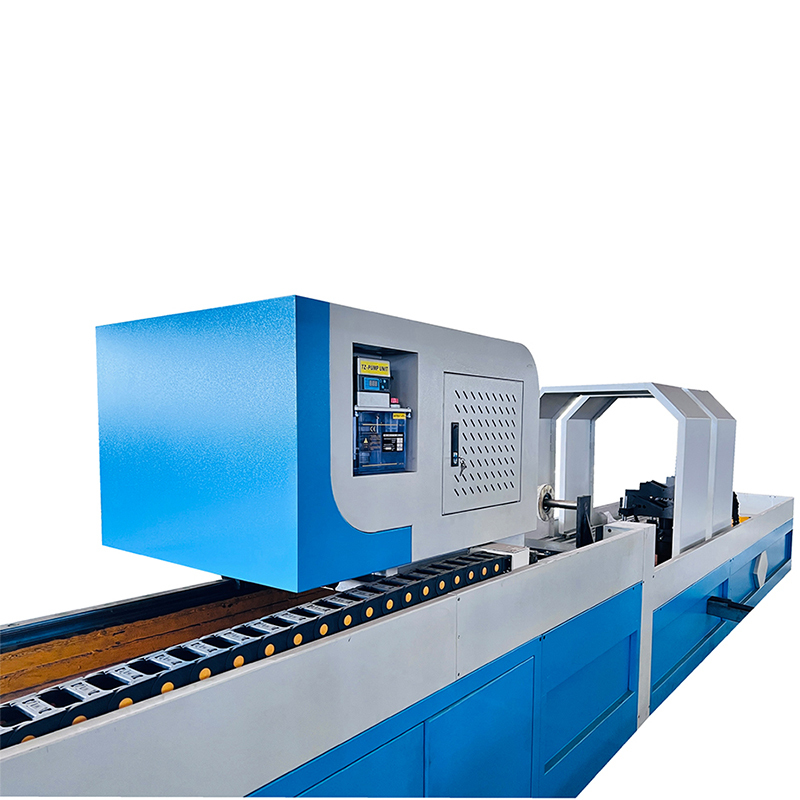

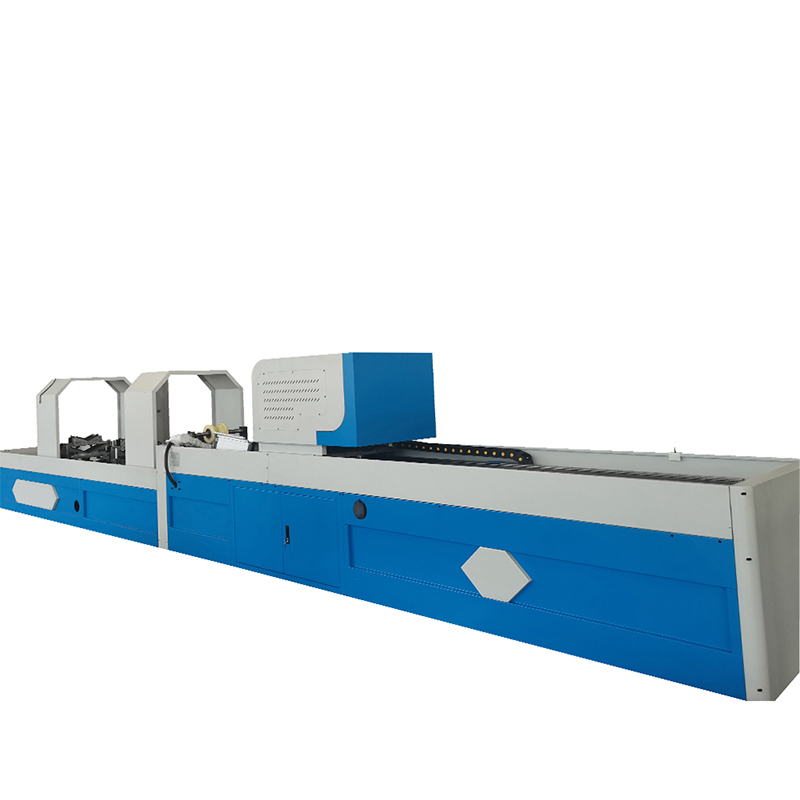

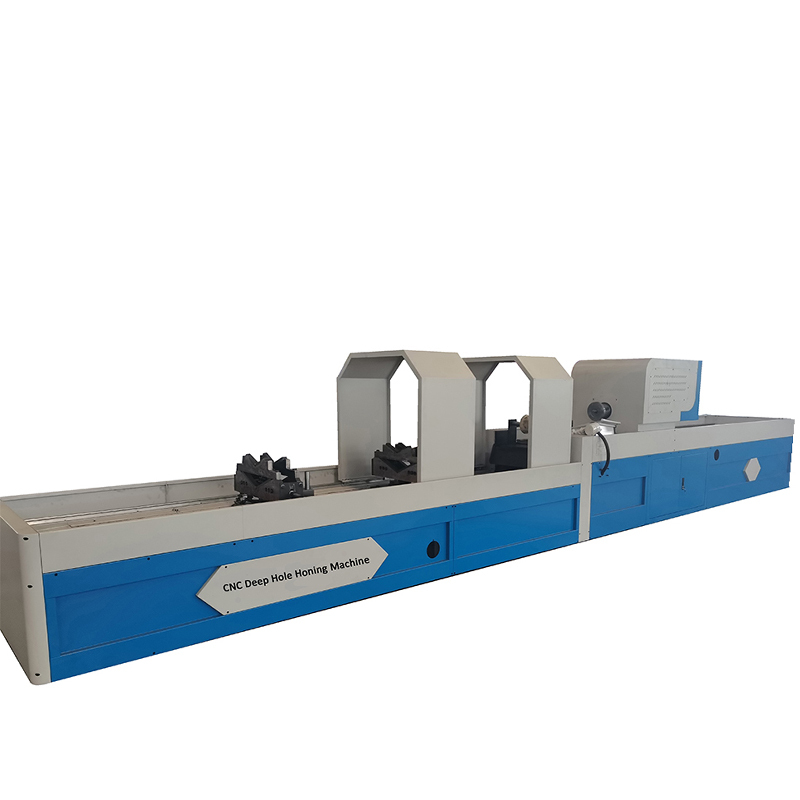

This is horizontal honing machine for hydraulic cylinder,also called deep hole
cylinder honing machine,
it is widely for all deep hole parts, hydraulic cylinder ,hole grinding and maintenance service.
Industry application:
Oil&gas,autoparts,pipeline,hydraulic cylinder repair and fabrication,automotive,military
Deep hole honing machine is suitable for cylindrical jobs honing and grinding process,
and also works for precision parts,after worked by the machine, the hole accuracy can be up to IT6~IT7,
surface roughness can be up to Ra0.2-0.4μm.
It adopts partial honing, the parts can be modified by processing the taper, ellipticity and local aperture error,

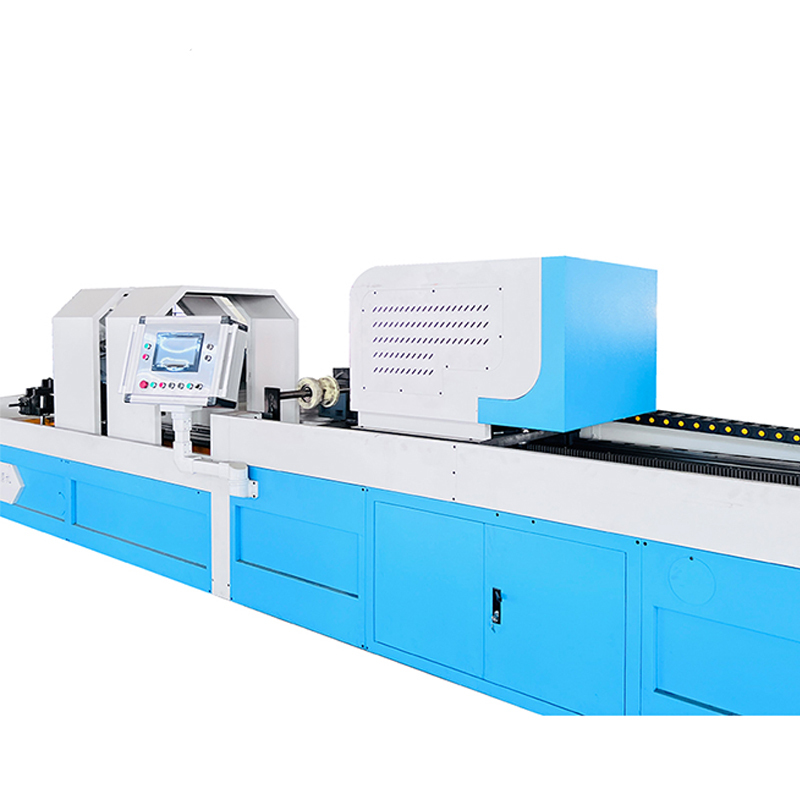

the honing machine is an ideal device for high precision and high efficiency, we adopts PLC control of Siemens,
running steady, easy to adjust the speed.
Machine woking pricinple:

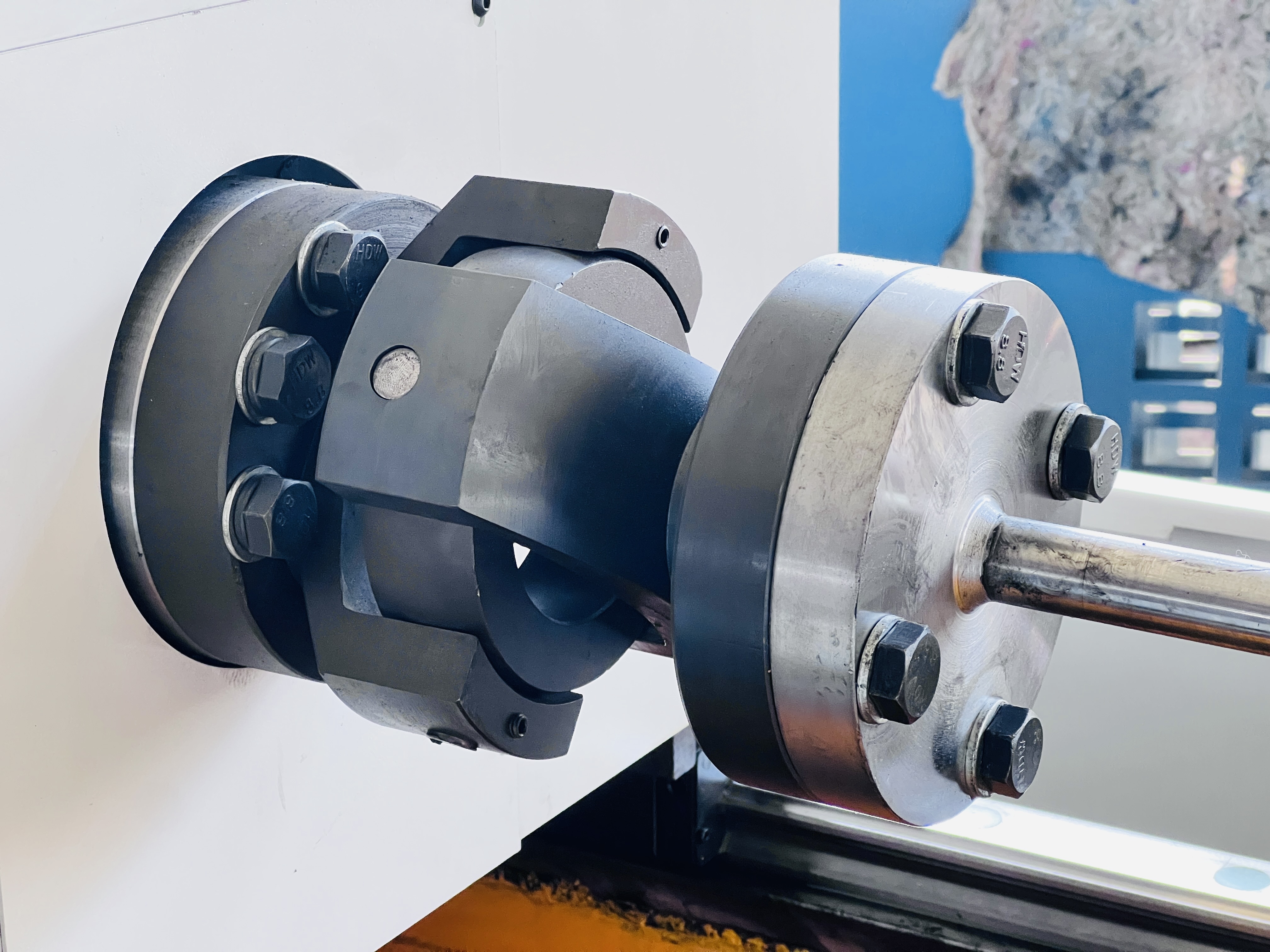

- Main spindle motor through reducer to drive main spindle to rotate honing pole.
- Servo motor through reducer to drive gear and rack to feed honing pole.
Through servo motor ,reducer,ball screw to get honing pole inner to extend honing head oil stone

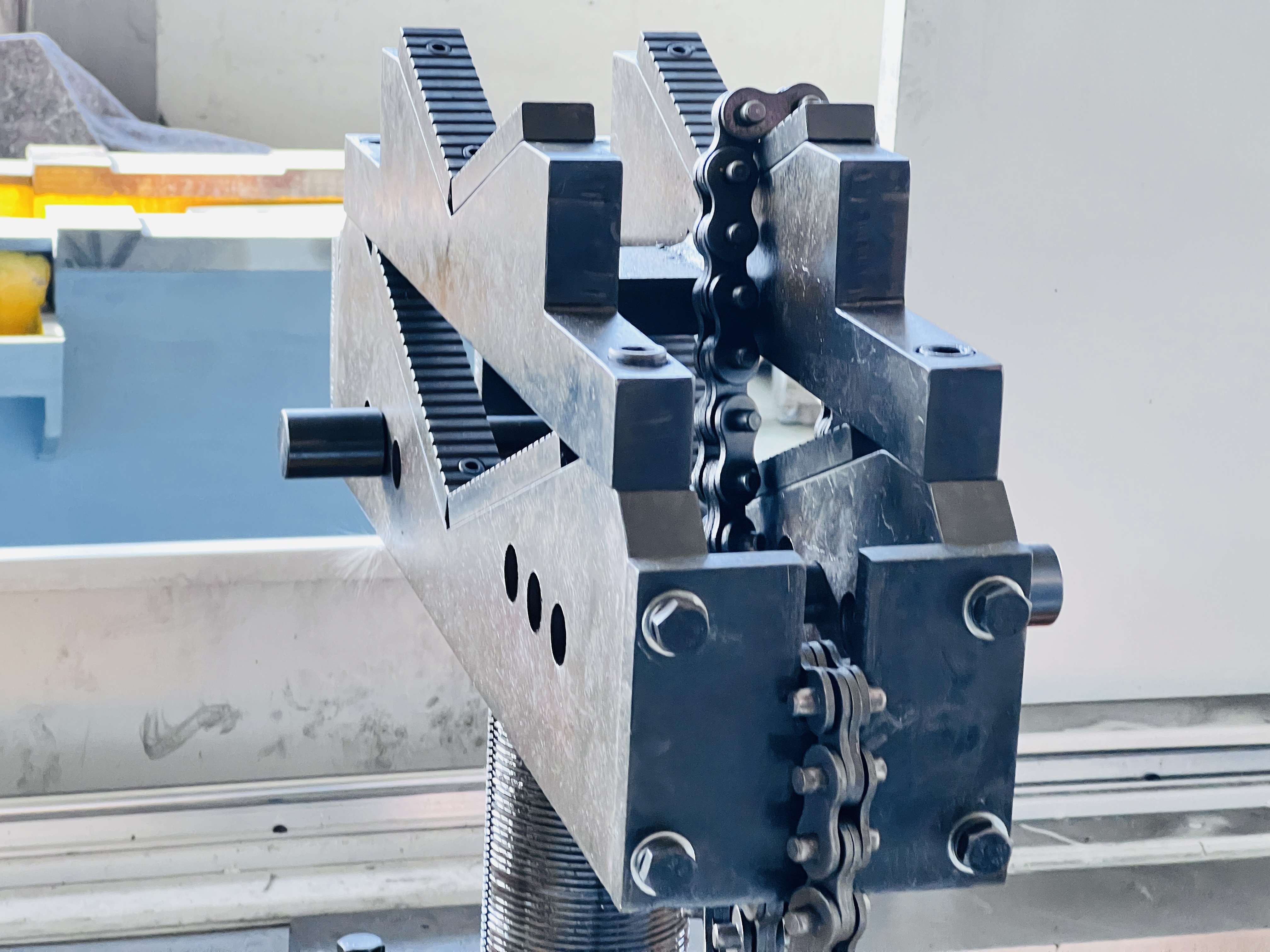

Cylinder/pipe clamp:clamp with chain lock device.
Cooling system:
cooling filtering with oil return system
